Key Points
Water features often must be included in the designed landscape of a golf course due to the very practical (and/or mandated) needs for irrigation water storage and run-off detention.
All of the functions of man-made water features (storage, strategic, ecological, and aesthetic) should be given consideration by the golf course architect and each feature should serve as many of these functions as is practical.
Cart paths may often be a necessary evil to minimize the damage that golf carts can cause but wall-to-wall concrete or asphalt paths are not necessarily always the best option, economically or aesthetically. Alternatives and restraint must be considered.
It is very easy for a golf course architect to become so focused on the storage, strategic, and aesthetic functions of man-made water features that the opportunities for ecological benefits get overlooked. While calculating whether a storage lake will have enough capacity to meet the golf course’s peak irrigation demand, the golf course architect may not be thinking about the vegetated buffer that can stabilize the edge of the lake and bio-filtrate overland flow before it enters the lake. While imagining the strategic excitement that a meandering stream on the 18th hole might bring to a close match (and how the hazard might look from the back patio of the clubhouse), the golf course architect may not be thinking about the important biological functions that the stream might serve for fish, wading birds, amphibians, and invertebrates and how best to connect the stream to a regional blue corridor that links water features on adjacent properties.
Well-designed water features serve a number of important purposes so it’s imperative that the storage, strategic, ecological, and aesthetic functions all be given consideration by the golf course architect and that each man-made water feature serve as many of these functions as is practical.
The Storage Function of Man-Made Water Features
Man-made water features are often needed on a golf course to store water for use by the irrigation system. The irrigation design consultant will assist the golf course architect in calculating exactly how much water will need to be stored for irrigation purposes based on the golf course design and a number of environmental factors, including, but not limited to:
total area of irrigated turf and landscaping,
turfgrass type(s),
watershed catchment area,
how much water is available from other sources (wells, treated wastewater),
evaporation-transpiration (ET) rates,
infiltration rates,
peak and annual rainfall.
Finally, the anticipated maintenance philosophy should also be considered when calculating the required storage capacity – will the golf course be maintained to be green and lush or firm (brown) and fast? The difference in irrigation volume requirements between these cultural practices can be significant.
Once the desired volume is calculated, it is up to the golf course architect to accommodate that volume of storage by integrating storage lakes into the designed landscape.
In addition to the volume required for peak irrigation, another consideration for the design of man-made water features is that many parts of the world are now experiencing more intense and more frequent storms due to climate change. In anticipation of this, larger buffer zones and adequate freeboard (excess volume between the top of the bank and the normal water elevation of the lake) should be incorporated into the designed water features. A qualified hydrologist or civil engineer can advise on whether the designed water features will satisfy all applicable storage and safety requirements.
Finally, an understanding of terminology is helpful: storage lakes are the primary source for irrigation water and can be drawn-down several feet if the rate that irrigation water is being used is greater than the refill rate (via pumping or runoff and overland flow). In contrast, balancing lakes have a relatively constant water level (maintained by pumps, balancing pipes, weirs, and overflows) and are often built more for aesthetic and/or strategic purposes – the water is to be used for irrigation only as a last resort. Below is a picture of a storage lake that has been drawn down several feet, while still functioning as a strategic hazard.
The Strategic Function of Man-Made Water Features
The North Sea and the Atlantic Ocean off the eastern and western coasts of Scotland were most likely golf’s very first water hazards. Even after golf courses started to be laid out and built away from the coast, early golf course architects were (necessarily) restricted to a site’s natural drainage patterns by a lack of earthmoving capability, letting the water move and collect largely as the land dictated and routing the golf course and conceiving each golf hole’s strategy in response to those natural processes.
Modern golf course architects know that they have the flexibility to alter naturally occurring water features, or simply build their own wherever they want, to suit their strategic ideas for a golf hole. However, the most sustainable, natural, and economic design solution will always be to follow the site’s natural drainage patterns to the greatest extent possible.
Whether the water features are natural or manufactured, golf course architects throughout history have come up with countless ways to incorporate them into the challenge of their golf holes. Penal, heroic, and strategic schools of golf course design all utilize water hazards in differing ways. Below are two famous golf holes that incorporate water features very differently (5th hole, Pine Valley Golf Club as a do-or-die penal hazard; 5th hole, Mid Ocean Club as a "bite-off-as-much-as-you-can-chew" strategic hazard). When strategic water features can also serve an ecological function, such as fostering biodiversity and/or bio-filtrating stormwater and irrigation run-off (note the gently sloping naturalized edges in the following pictures), all the better.
The Ecological Function of Man-Made Water Features
In many parts of the world, the use of groundwater as a source for irrigation is being restricted or has become prohibitively expensive. As a result, golf course irrigation is increasingly reliant on what are often lesser-quality water sources, e.g. treated wastewater and collected surface water. These sources frequently have higher nutrient content (nitrogen, potassium, and phosphorus, typically from fertilizer), in addition to higher salt, sediment, and contaminant levels. Poor water quality can impact not only turf growth but also clog irrigation and aeration equipment and detract from golf course aesthetics (algae, odor, etc).
Therefore, one of the most important ancillary functions of natural and man-made water features is to improve water quality to make it more suitable for irrigation and (when necessary) off-site release. The most economical and ecological methods for proactively improving water quality include:
Reducing the use of fertilizers (primarily phosphorus, which encourages algal blooms) and other chemical inputs (pesticides, herbicides), especially near lake edges, to reduce the need for water treatment;
Incorporating SuDS features (such as small streams and broad shallow channels that are full of native plant life and feed into natural or constructed wetlands and marshes) upstream of the storage and balancing lakes. These features will slow the flow of runoff water, allowing more of it to percolate into the ground, where it will be naturally filtered and returned to groundwater. The water that doesn’t percolate will have chemicals and nutrients bio-filtered by the native plants and will have been slowed down enough to have some of the particulate pollution settle out. SuDS features are discussed in greater detail in Step 8: Storm Drainage Design and Installation & An Overview of SuDS;
Establishing and maintaining native vegetative lake buffers that are at least 6’ (2 meters) wide to slow and filter overland flow before it enters a lake. These buffers have the additional benefit of providing habitat for fish, wading birds, amphibians, and other aquatic organisms (some of which are natural mosquito predators). Vegetated shorelines are also less erosion prone and decrease the amount of goose-friendly lakeside habitat;
Goose waste is a big source of phosphorous and goose traffic can undermine shorelines and cause bank erosion, so keeping geese away using non-lethal behavioral and harassment techniques will go a long way toward improving water quality and bank stability;
Designing water features so they are less favorable to the growth of weeds and algae – generally storage and balancing lakes should be between 9-15’ (3-5 meters) deep to encourage circulation and prevent the kind of stratification that is harmful to a lake’s biological processes;
Types and elements of ecologically valuable water features include:
Wetlands, lagoons, and ponds with a variety of widths and depths (pools, islands, and spits) to encourage plant and animal biodiversity;
Include a transitional area (littoral zone) filled with native vegetation on the perimeter of the lake for pollutant filtering, biodiversity, and erosion control;
Gradual banks (no steeper than 3:1) for easier access by (non-goose) wildlife;
Landscaped with local flora that is correctly placed based on wet tolerance, visual appeal, and playing characteristics (to reduce the incidence of lost balls when near in-play areas);
Connected to other water features both on- and off-site to create a “blue corridor” for wildlife.
Some photos of these ecological measures are below:
SuDS features and naturalized lake buffers at Pine Valley CC and Shinnecock Hills CC
All man-made water features on a golf course should also be designed to serve the important ecological function of capturing the majority of the water that falls on the site during a rainfall event and either storing it (retention) or slowing it down to allow for particulate settling and groundwater recharge before it is eventually released off-site (detention). One of the primary benefits of detaining stormwater is to offset the peak flow of a storm, which will reduce the risk of flooding, erosion, and pollution downstream. Incidentally, these are also the principal functions of a Sustainable Drainage System (SuDS).
The Aesthetic Function of Man-Made Water Features
One final function of man-made water features that a golf course architect needs to consider are the aesthetics, which are the least tangible and, therefore, the most difficult to get right. Aesthetic is defined by the Oxford Living Dictionary as, “Adj. – 1.1. Giving or designed to give pleasure through beauty.” (https://en.oxforddictionaries.com/definition/aesthetic)
The burgeoning field of Environmental Psychology seeks to study the relationship between people and their physical surroundings, to understand how and why the environment impacts people, and to use that knowledge to improve the relationship between people and the world around them (Ackerman). Most relevant to the topic of this article, there are theories of Environmental Psychology (e.g., “The Ideal Environment”) that can help to explain why a designed environment (such as a golf course) might be pleasurable or distressing to the person experiencing it. With a better understanding of the basic tenets of Environmental Psychology, a golf course architect can better understand how to design a golf course (including water features) to evoke the desired psychological effect.
A more thorough exploration of this topic of this can be found here: https://golfclubatlas.com/in-my-opinion/enhancing-the-experience-of-golf-through-landscape-design-and-environmental-psychology-by-jamie-black/ (Black)
Slightly off topic, but another fascinating exploration of the relationship between people and their environment is the Japanese practice of shinrin-yoku (translated as "forest bathing"). More information here: https://time.com/5259602/japanese-forest-bathing/
The way that light shimmers off the surface of the water, the images that are reflected, the colors that are amplified or distorted, even sounds and smells all play into the intangible perception of the beauty of an object (in this case, a lake at PGA West’s Stadium Course).
Cart Paths
Finally, a brief discussion about cart paths. For many golf courses, golf carts, aka motorized buggies, are an irreplaceable source of revenue and well ingrained into the golfing culture (especially in the United States). They also make the game accessible to golfers who are mobility-impaired. As such, as much as they may be disparaged by golf traditionalists, it is probably unreasonable to expect that golf carts can ever be fully eradicated from the modern game.
However, where there are golf carts, there is also often compaction and turf damage. Ground that is frequently wet and areas that are subject to a lot of concentrated golf cart and maintenance equipment traffic are particularly hard hit. All too often, the first proposed solution is to construct a network of concrete and/or asphalt cart paths and curbs to avoid or alleviate the dameage. It’s important to consider, however, that cart paths and curbs can result in a large carbon footprint (materials sourcing and mixing, transport, and installation), can be an eyesore within an otherwise natural looking landscape, can have an impact on playability (when errant balls ricochet off the paths), and are an expensive line item to build and eventually replace.

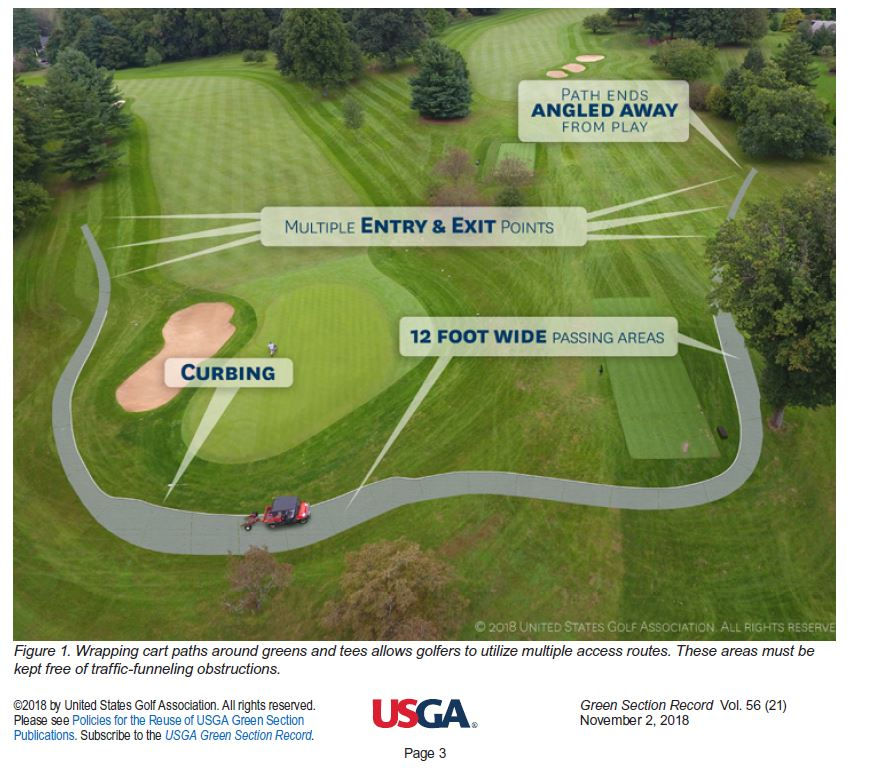

One solution is to minimize the use of cart paths and curbs so that they’re only found in areas that will get the most concentrated traffic, e.g. near buildings, tees, and greens. Below is a graphic prepared by the USGA, which illustrates some design concepts to make these limited paths more effective:
(retrieved from file:///C:/Users/onesc/AppData/Local/Temp/oatis-kammerer-cart-11-2-18-1.pdf)
In the name of economic and ecological sustainability, more sustainable alternatives to concrete and asphalt cart paths should also be given consideration. Alternatives that are hearty enough for use in high-wear areas but that are porous and blend with the natural environment are the ideal. Recycled crumb rubber, various polymer sprays that harden soil, porous rubber matting, and even crushed oyster shells (preferably locally sourced) can all withstand foot traffic, if not a low level of golf cart traffic.
These “unstable material” paths have drawbacks versus the more stable concrete and asphalt paths but golf course architects should be willing to test and propose various alternatives before automatically deciding that wall-to-wall concrete or asphalt cart path is the only solution.
Contact Sustain Golf for More Information!
We would be happy to make recommendations or answer any questions that you might have about sustainable and accessible golf course design, construction, or maintenance. Visit www.SustainGolf.com or contact us at the following address for more information: Contact@SustainGolf.com.
The European Institute of Golf Course Architects (EIGCA), in partnership with the GEO Foundation, has developed a continuing professional development program for its members called Raising the Standard of Sustainable Golf Course Development, or RSSGCD. This is the industry’s only structured program in the world to specifically train golf course architects in sustainable golf course design, construction, and maintenance best practices. A Sustain Golf team member has attained Stage 3 of this rigorous program.
A Sustain Golf team member is also currently serving on the EIGCA’s Sustainability Committee and is a GEO Certified Accredited Sustainability Verifier.
We firmly believe that common sense sustainable design, construction, and maintenance practices are the keys to the long-term survival of the game of golf. We aspire to be on the leading edge of applying sustainability concepts to golf course design, construction, and maintenance.
We will spend every day for the duration of the project on-site and/or coordinating with all contractors, subcontractors and professional consultants to be sure that no opportunities are lost and that the best golf course for your property is realized.
Up Next:
Step 15 – Topsoil Respreading (or Sand Capping) and Seedbed Preparation
Sustain Golf is a collaborative group of like-minded qualified golf course architects. We are also qualified and experienced as civil engineers, vertical architects, and project managers. We have the breadth and diversity of experience and knowledge to offer a full suite of golf course design and construction services, from first concept to opening day on your new or remodeled golf course.
