Key Points
With fine shaping, drainage, and irrigation system installation winding down, the shapers can be redeployed to begin the process of topsoil respreading (or sand capping).
The topsoil should be free of old turf, weeds, clumps, and rocks. Any soil amendments that are needed should be added before seeding or sprigging take place.
This is also a good time for the golf course builder to begin addressing small final details, including bringing valve boxes to the correct levels, tying in the edges of cart paths with their surrounds, and setting catch basin grates to their finished levels.
As fine shaping, drainage, and irrigation installation is approved and begins to wind down, shapers can be redeployed to begin respreading the topsoil that had been stockpiled during the clearing and grubbing phase (see Step 6: Construction Begins! Surveying, Site Preparation, and Clearing) or, if the project calls for it, capping the shaped subgrade with sand. Typically, topsoil or sand cap should be spread to a thickness of 6” (15 cm) on all fairways, tee slopes, green slopes, and mounds and feathered down to tie seamlessly into the undisturbed surrounds. For roughs, 4” (10 cm) is usually adequate. If any topsoil is to be imported from off-site, it should be consistent in structure with the native topsoil.
Preparation of the Seedbed
If the topsoil was stockpiled prior to bulk earthwork and has been sitting in place for weeks or months, native vegetation may have begun to grow on it. Desirable native plants or seeds can be harvested from the topsoil stockpile as an inexpensive source of plant stock for use in areas that are to be revegetated with native plants.
After any harvesting is finished, if the vegetation has grown to a height of more than 15” (40 cm), it should be mowed or cut down prior to moving the stockpiled topsoil.
The stockpiled topsoil is then moved by excavators or bulldozers into piles to help break up the remaining organic material. It can then be pushed by bulldozers or loaded into dump trucks and moved to wherever it is to be respread. Respreading will typically be done by a bulldozer with 6-way blade (for large areas) or an excavator with a tilt bucket around greens and in smaller areas. The machinery will vary based on the site conditions
An excavator respreading topsoil
Once the topsoil has been respread, any old turf or weeds that remain need to be plowed under in preparation for planting. Weeds that remain will compete with newly planted seedlings or sprigs so frequent plowing and rototilling (as frequently as once per week) are a good means of controlling the weeds until seeding or sprigging can take place.
If the consulting agronomist has determined through soil testing that soil amendments are required, they can be applied next. Amendments can be used to adjust the pH of the topsoil and to add necessary nutrients that are lacking. These amendments can be applied using large farm equipment and lightly mixed into the topsoil using a disc or a rotovator attachment.

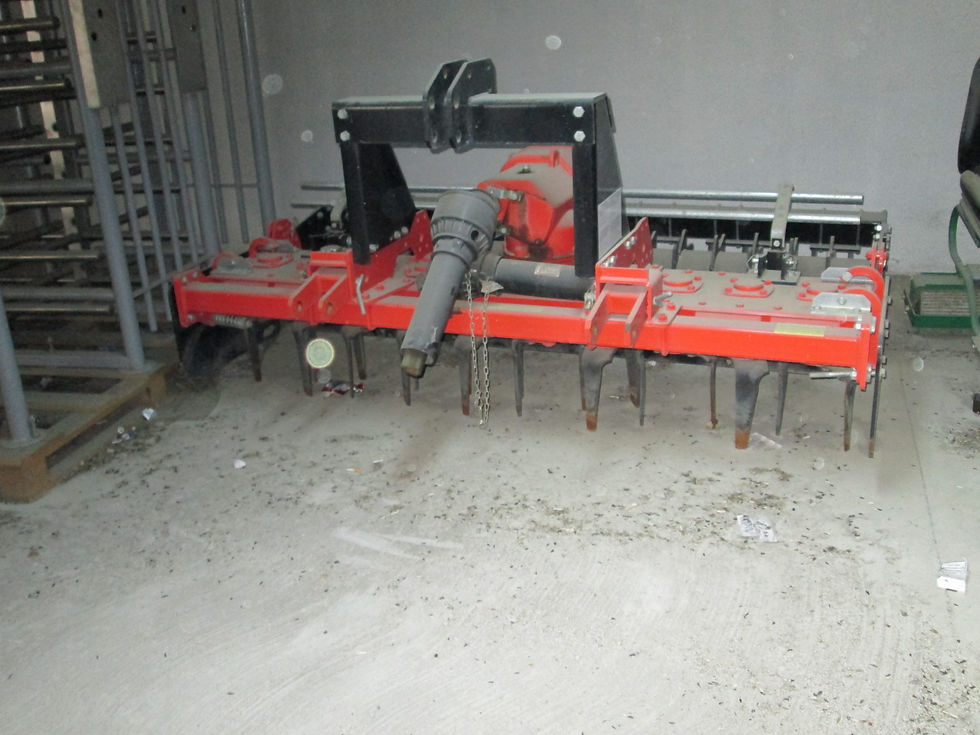

Rotovator attachment to break up and mix topsoil with amendments
Once the amendments have been worked in, final grading can take place. The goal of this process is to break up large dirt clods and ensure that all large rocks (greater than 2” (5 cm)), roots, and debris have been removed from the seedbed. Low spots (aka birdbaths) that hold water should also be filled in and smoothed at this point.
Final grading is often done by discing the soil, followed by a pass with a York rake, followed by a float, land leveler, box blade, or finishing rake. Ultimately, the best equipment to use (some examples pictured below) will depend on the site conditions. Wet or rocky sites will require different equipment than generally dry or sandy sites.
Golf features, such as tees, greens, bunkers, and small mounds, will be final graded by small equipment (e.g. Sand Pro) or hand labor so their features are not flattened or distorted.
Stone burier attachment to bury small rocks
Rake board or York rake attachment for fine shaping or collecting small debris
Float attachment for fine shaping and smoothing sand
Box blade attachment for fine shaping and smoothing
Box blade attachment for fine shaping and smoothing
Sand Pro to fine shape golf features or small areas
The golf course builder can also begin addressing small final details at this time, including bringing valve boxes to the correct levels, tying in the edges of cart paths with the surrounding ground, and setting catch basin grates to their final levels.
Next Steps
When the golf course builder has finished final grading and preparation of the seedbed, the golf course architect must approve the final shaping, while also performing spot inspections to ensure that the topsoil (or sand cap) is spread to a uniform thickness, that all large rocks and debris have been removed, and that all areas are properly graded to ensure overland drainage (typically, at least 3% slope) to a catch basin or an out of play area. The compaction and moisture level of the seedbed should be reviewed by the consulting agronomist to ensure that it as optimal as possible before planting takes place.
The irrigation design consultant will supervise a final performance test of the irrigation system to double check that each head is functioning properly and oriented correctly. Any malfunctions in the irrigation system will be very disruptive during grow-in so it’s important to have confidence prior to seeding or sprigging.
